Series 9 - Shrouded

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # 3d779cae2d46

10-1/8″ OD Fan

×

Blade Height (A) - in.
1.375
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
1.625
Overall Diameter (D) - in.
10.125
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
5.875
Max Bore Allowed - in.
2.5
Number of Blades
16
Material
Aluminum
Weight - lbs
4
Part # cf1f78fe923a

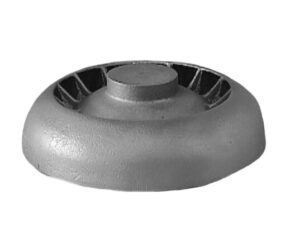

11-1/8″ OD Fan

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
11.125
Hub Recess (E) - in.
2.25
Plate Diameter (H) - in.
7.125
Max Bore Allowed - in.
2.625
Number of Blades
15
Material
Aluminum
Weight - lbs
3.7
Part # fb508ef074ee

11-1/8″ OD Fan

×

Blade Height (A) - in.
2.75
Hub Diameter (B) - in.
3
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
11.125
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
4
Max Bore Allowed - in.
2.5
Number of Blades
8
Material
Aluminum
Weight - lbs
5.95
Part # cf9a242b70f4

11-3/8″ OD Fan

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
3.25
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
11.375
Hub Recess (E) - in.
1.125
Plate Diameter (H) - in.
6.75
Max Bore Allowed - in.
2.75
Number of Blades
13
Material
Aluminum
Typical Frame
GE
Weight - lbs
2.8
Part # f9be311e65d8

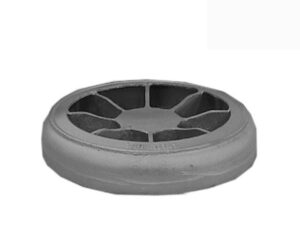

11-7/8″ OD Fan

×

Blade Height (A) - in.
2.4375
Hub Diameter (B) - in.
3.25
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
11.875
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
3.25
Max Bore Allowed - in.
2.75
Number of Blades
8
Material
Aluminum
Weight - lbs
4.85
Part # 82965d4ed815

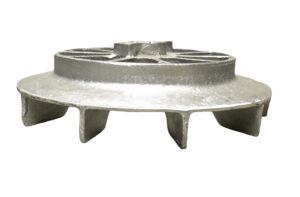

11″ OD Fan

×

Blade Height (A) - in.
2.625
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
11
Hub Recess (E) - in.
1.875
Plate Diameter (H) - in.
2.5
Max Bore Allowed - in.
1.25
Number of Blades
10
Material
Aluminum
Weight - lbs
2.5
Part # 9683cc5f8956

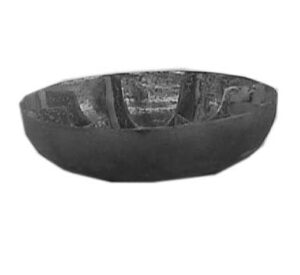

12-3/4″ OD Fan

×

Blade Height (A) - in.
3.5
Hub Diameter (B) - in.
2.625"
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
12.75
Hub Recess (E) - in.
2.125
Plate Diameter (H) - in.
2.625
Max Bore Allowed - in.
2.125
Number of Blades
8
Material
Aluminum
Weight - lbs
5.1
Part # 01e9565cecc4

12-3/8″ OD Fan

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
2.375
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
12.375
Hub Recess (E) - in.
2.1875
Plate Diameter (H) - in.
6.625
Max Bore Allowed - in.
1.875
Number of Blades
8
Material
Aluminum
Weight - lbs
4.1
Need something Custom? We can make it in the foundry.
Learn More
Part # 6a5889bb0190

13-1/8″ OD Fan

×

Blade Height (A) - in.
3.125
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
13.125
Hub Recess (E) - in.
2.25
Plate Diameter (H) - in.
13.125
Max Bore Allowed - in.
2.625
Number of Blades
11
Material
Aluminum
Weight - lbs
5.25
Part # c26820b8a4c1

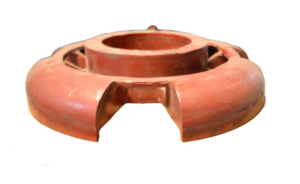

14-1/8″ OD Fan

×

Blade Height (A) - in.
2.3125
Hub Diameter (B) - in.
7.25
Hub Thickness (C) - in.
2.625
Overall Diameter (D) - in.
14.125
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
7.25
Max Bore Allowed - in.
6.75
Number of Blades
12
Material
Aluminum
Weight - lbs
7
Part # 05311655a15b

14-1/8″ OD Fan

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
1.3125
Overall Diameter (D) - in.
14.125
Hub Recess (E) - in.
0.5625
Plate Diameter (H) - in.
8.75
Max Bore Allowed - in.
2.25
Number of Blades
12
Material
Aluminum
Weight - lbs
3.85
Part # fe51510c80bf

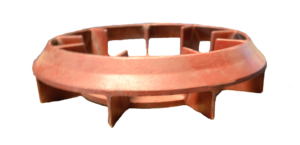

14-3/4″ OD Fan

×

Blade Height (A) - in.
3.25
Hub Diameter (B) - in.
5.75
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
14.75
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
9.875
Max Bore Allowed - in.
5.25
Number of Blades
9
Material
Aluminum
Weight - lbs
7.5
Part # e48e13207341

14-3/4″ OD Fan

×

Blade Height (A) - in.
2.375
Hub Diameter (B) - in.
3.125
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
14.75
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
8
Max Bore Allowed - in.
2.625
Number of Blades
11
Material
Aluminum
Weight - lbs
8.65
Part # 4671aeaf49c7

14-7/8″ OD Fan

×

Blade Height (A) - in.
1.75
Hub Diameter (B) - in.
5.625
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
14.875
Hub Recess (E) - in.
0.625
Plate Diameter (H) - in.
7.5
Max Bore Allowed - in.
5.125
Number of Blades
11
Material
Aluminum
Typical Frame
GE
Weight - lbs
8
Part # 33ebd5b07dc7

14″ OD Fan

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
3.5
Hub Thickness (C) - in.
1.75
Overall Diameter (D) - in.
14
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
9.25
Max Bore Allowed - in.
3
Number of Blades
10
Material
Aluminum
Weight - lbs
6.55
Part # 4f87658ef0de

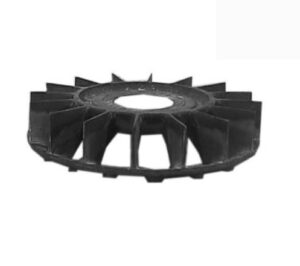

16″ OD Fan

×

Blade Height (A) - in.
2.5
Hub Diameter (B) - in.
2.75
Hub Thickness (C) - in.
1.125
Overall Diameter (D) - in.
16
Hub Recess (E) - in.
0.875
Plate Diameter (H) - in.
11.75
Max Bore Allowed - in.
2.25
Number of Blades
14
Material
Aluminum
Weight - lbs
7.35
Part # 76cf99d3614e

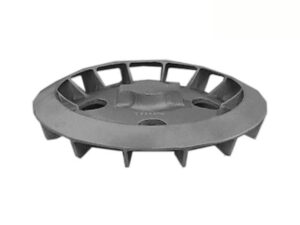

16″ OD Fan

×

Blade Height (A) - in.
4
Hub Diameter (B) - in.
6.75
Hub Thickness (C) - in.
1.5625
Overall Diameter (D) - in.
16
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
9.75
Max Bore Allowed - in.
6.25
Number of Blades
16
Material
Aluminum
Typical Frame
B. Ring
Weight - lbs
14
Part # 5e1b18c4c6a6

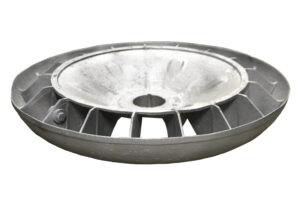

19-1/2″ OD Fan

×

Blade Height (A) - in.
3
Hub Diameter (B) - in.
4.375
Hub Thickness (C) - in.
2.375
Overall Diameter (D) - in.
19.5
Hub Recess (E) - in.
2
Plate Diameter (H) - in.
13.875
Max Bore Allowed - in.
3.875
Number of Blades
17
Material
Aluminum
Weight - lbs
14.1
Part # a50abba8132a

2-1/2″ OD Fan

×

Blade Height (A) - in.
0.625
Hub Diameter (B) - in.
0.4375
Hub Thickness (C) - in.
0.3125
Overall Diameter (D) - in.
2.5
Hub Recess (E) - in.
-0.125
Plate Diameter (H) - in.
1.375
Max Bore Allowed - in.
0.125
Number of Blades
9
Material
Aluminum
Weight - lbs
0.1

Need something Custom? We can make it in the foundry.
