Part # e9b73bccd176

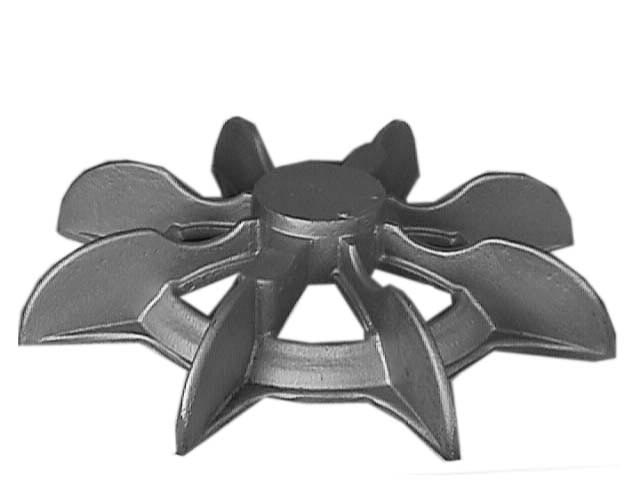

16″ OD Fan

Product Overview Specs Documentation

Series 1 Shallow Recess Fans are typically used on horizontal TEFC induction motors. First developed to fit U-frame GE motors, these patterns were then modified slightly to fit other manufacturers’ motors.

1.25” hub recess
8 blades
2.75” max bore allowed

Specs

Series 1 fans are used most often on horizontal TEFC induction motors. This fan has a small hub recess (E dimension).

Blade Height (A) - in.: 3
Hub Diameter (B) - in.: 3.5
Hub Thickness (C) - in.: 2
Overall Diameter (D) - in.: 16
Hub Recess (E) - in.: 1.25
Plate Diameter (H) - in.: 3.5
Max Bore Allowed - in.: 2.75
Number of Blades: 8
Material: Aluminum
Typical Frame: 360
Weight - lbs: 7.2
