Series 9 - Shrouded

Sort By

woocommerce_catalog_ordering

Overall Diameter

Blade Height / Width

Number of Blades

Hub Recess

Hub Thickness

Maximum Allowed Bore

Plate Diameter

Direction

Material

Part # e077e1a544ee

2″ OD Fan

×

Blade Height (A) - in.
0.375
Hub Diameter (B) - in.
0.625
Hub Thickness (C) - in.
0.25
Overall Diameter (D) - in.
2
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
1.0625
Max Bore Allowed - in.
0.125
Number of Blades
8
Material
Aluminum
Weight - lbs
0.05
Part # f3bd5ad57c83

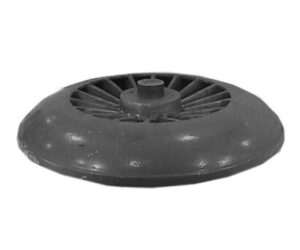

22-7/8″ OD Fan

×

Blade Height (A) - in.
2.875
Hub Diameter (B) - in.
5.25
Hub Thickness (C) - in.
2.5
Overall Diameter (D) - in.
22.875
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
11.75
Max Bore Allowed - in.
4.75
Number of Blades
18
Material
Aluminum
Weight - lbs
50
Part # bcc0d4002887

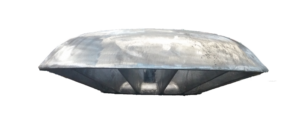

28-5/8″ OD Fan

×

Blade Height (A) - in.
6.75
Hub Diameter (B) - in.
5.375
Hub Thickness (C) - in.
5
Overall Diameter (D) - in.
28.625
Hub Recess (E) - in.
0.4375
Plate Diameter (H) - in.
13.125
Max Bore Allowed - in.
4.75
Number of Blades
16
Material
Aluminum
Weight - lbs
56
Part # f93882cbd8fc

4-1/2″ OD Fan

×

Blade Height (A) - in.
1
Hub Diameter (B) - in.
1.5
Hub Thickness (C) - in.
1
Overall Diameter (D) - in.
4.5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
4.5
Max Bore Allowed - in.
1
Number of Blades
6
Material
Aluminum
Weight - lbs
0.5
Part # f29b38f160f8

4-1/4″ OD Fan

×

Blade Height (A) - in.
1.3125
Hub Diameter (B) - in.
1.375
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
4.25
Hub Recess (E) - in.
0.375
Plate Diameter (H) - in.
4.25
Max Bore Allowed - in.
0.875
Number of Blades
6
Material
Aluminum
Weight - lbs
1
Part # 3546ab441e56

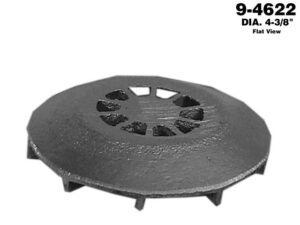

4-3/8″ OD Fan

×

Blade Height (A) - in.
0.875
Hub Diameter (B) - in.
0.9375
Hub Thickness (C) - in.
0.625
Overall Diameter (D) - in.
4.375
Hub Recess (E) - in.
0.3125
Plate Diameter (H) - in.
4.375
Max Bore Allowed - in.
0.5
Number of Blades
10
Material
Aluminum
Weight - lbs
0.2
Part # 861dc9bd7f4e

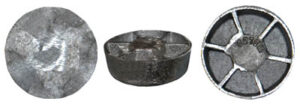

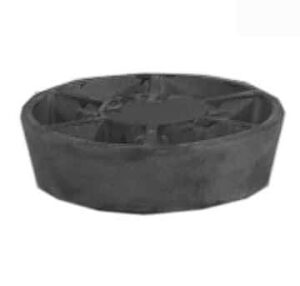

4-5/8″ OD Fan

×

Blade Height (A) - in.
1.3125
Hub Diameter (B) - in.
2
Hub Thickness (C) - in.
1.3125
Overall Diameter (D) - in.
4.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
4.625
Max Bore Allowed - in.
1.5
Number of Blades
6
Material
Aluminum
Typical Frame
Brake
Weight - lbs
1
Part # 674bfc5f6b72

4-5/8″ OD Fan

×

Blade Height (A) - in.
1.375
Hub Diameter (B) - in.
1.875
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
4.625
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
4.625
Max Bore Allowed - in.
1.375
Number of Blades
6
Material
Aluminum
Typical Frame
Coil
Weight - lbs
1.05
Need something Custom? We can make it in the foundry.
Learn More
Part # ee8374ec4e4a

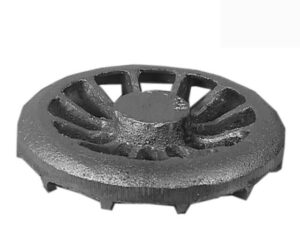

5-1/2″ OD Fan

×

Blade Height (A) - in.
1.0625
Hub Diameter (B) - in.
1.5
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
5.5
Hub Recess (E) - in.
0.25
Plate Diameter (H) - in.
1.625
Max Bore Allowed - in.
1
Number of Blades
12
Material
Aluminum
Typical Frame
145T
Weight - lbs
0.55
Part # 9cb67ffb5955

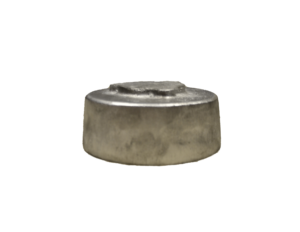

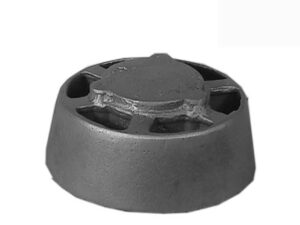

5-1/4″ OD Fan

×

Blade Height (A) - in.
2
Hub Diameter (B) - in.
2.125
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
5.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.25
Max Bore Allowed - in.
1.625
Number of Blades
6
Material
Aluminum
Weight - lbs
1.8
Part # f3f1b7fc5a87

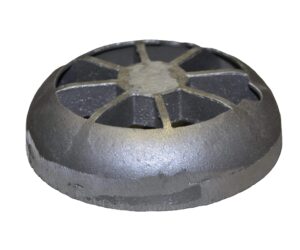

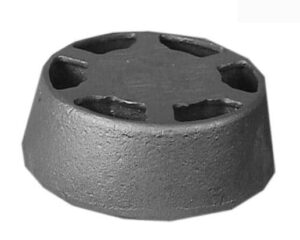

5-1/4″ OD Fan

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
2.25
Overall Diameter (D) - in.
5.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.25
Max Bore Allowed - in.
2
Number of Blades
6
Material
Aluminum
Weight - lbs
1.5
Part # 980ecd059122

5-1/4″ OD Fan

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
1.5
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
5.25
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
5.25
Max Bore Allowed - in.
1
Number of Blades
8
Material
Aluminum
Weight - lbs
0.5
Part # b8c27b7a1c45

5-1/4″ OD Fan

×

Blade Height (A) - in.
1.875
Hub Diameter (B) - in.
2.5
Hub Thickness (C) - in.
1.875
Overall Diameter (D) - in.
5.25
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
5.25
Max Bore Allowed - in.
2
Number of Blades
6
Material
Aluminum
Typical Frame
Brake
Weight - lbs
1.5
Part # 50905d7b2216

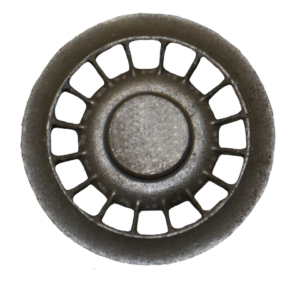

5-13/16″ OD Fan

×

Blade Height (A) - in.
0.9375
Hub Diameter (B) - in.
1.9375
Hub Thickness (C) - in.
0.8125
Overall Diameter (D) - in.
5.8125
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
3.3125
Max Bore Allowed - in.
1.4375
Number of Blades
16
Material
Aluminum
Weight - lbs
0.65
Part # 8b0dc65f996f

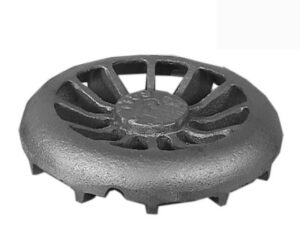

5-3/4″ OD Fan

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
0.75
Overall Diameter (D) - in.
5.75
Hub Recess (E) - in.
0.125
Plate Diameter (H) - in.
1.625
Max Bore Allowed - in.
1.125
Number of Blades
12
Material
Aluminum
Typical Frame
145T
Weight - lbs
0.65
Part # 4c22bd444899

5-3/4″ OD Fan

×

Blade Height (A) - in.
1.125
Hub Diameter (B) - in.
2.625"
Hub Thickness (C) - in.
0.875
Overall Diameter (D) - in.
5.75
Hub Recess (E) - in.
0.75
Plate Diameter (H) - in.
4.375
Max Bore Allowed - in.
2.125
Number of Blades
15
Material
Aluminum
Weight - lbs
1.1
Part # dc960c46c38b

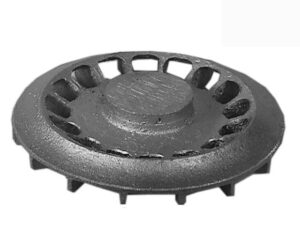

5-5/8″ OD Fan

×

Blade Height (A) - in.
0.875
Hub Diameter (B) - in.
1.75
Hub Thickness (C) - in.
0.5625
Overall Diameter (D) - in.
5.625
Hub Recess (E) - in.
0.5
Plate Diameter (H) - in.
3.125
Max Bore Allowed - in.
1.25
Number of Blades
16
Material
Aluminum
Weight - lbs
0.62
Part # d10ec7c16cbe

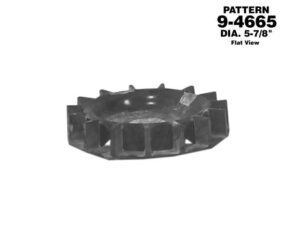

5-7/8″ OD Fan

×

Blade Height (A) - in.
1.25
Hub Diameter (B) - in.
1.625
Hub Thickness (C) - in.
1.375
Overall Diameter (D) - in.
5.875
Hub Recess (E) - in.
-0.25
Plate Diameter (H) - in.
5.875
Max Bore Allowed - in.
1.125
Number of Blades
12
Material
Aluminum
Weight - lbs
0.85
Part # ff49cc40a889

5″ OD Fan

×

Blade Height (A) - in.
1.5
Hub Diameter (B) - in.
1.5625
Hub Thickness (C) - in.
0.5
Overall Diameter (D) - in.
5
Hub Recess (E) - in.
0
Plate Diameter (H) - in.
1.5625
Max Bore Allowed - in.
1.0625
Number of Blades
8
Material
Aluminum
Weight - lbs
0.25

Need something Custom? We can make it in the foundry.
