Part #
8d3369c4c086
7-1/4″ OD Fan
Series 9 Shrouded Fans have a ring or shroud cast around the blade tips which confines and directs air flow. The ring also provides stronger construction, limiting damage to the blades tip.
- 1.1875” hub recess
- 9 blades
- 1.5625” max bore allowed
Overview

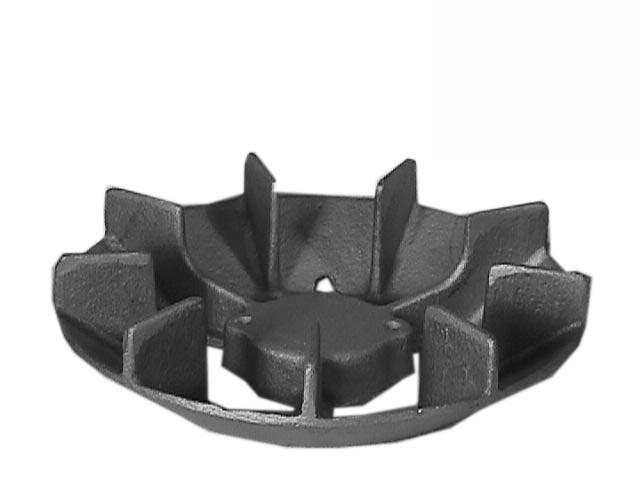

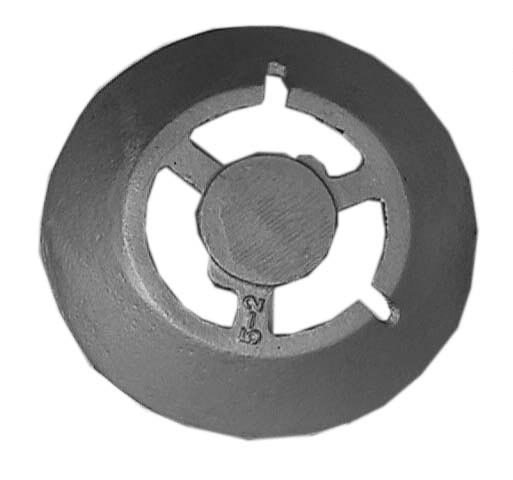

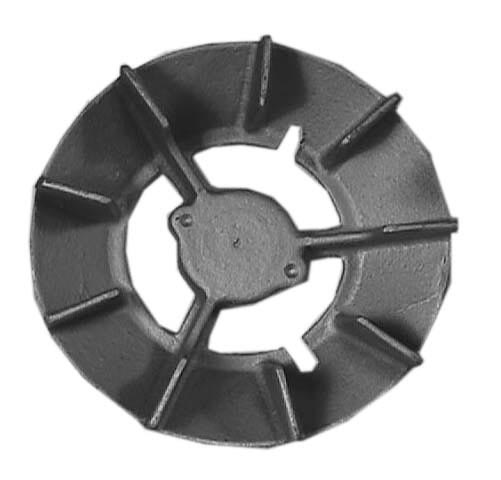

Cast in Aluminum, this Series 9 7-1/4" Shrouded Fan can direct air through or over the motor without a close-fitting fan cover. Its ring also means stronger construction, minimizing blade tip damage.This fan can be machined to your exact specifications by Jenkins or be provided as-is for in-house machining. Please provide exact machining specifications or call Jenkins at 800-438-3003 for machining questions.
Specs
Series 9 fans have a ring or shroud cast around the blade tips which confines and directs the airflow. This type of fan may direct the air through or over the motor without the benefit of a close fitting fan cover. The ring also provides stronger construction, limiting damage to the blades tip.
- Blade Height (A) - in.
- 2.125
- Hub Diameter (B) - in.
- 2.125
- Hub Thickness (C) - in.
- 1
- Overall Diameter (D) - in.
- 7.25
- Hub Recess (E) - in.
- 1.1875
- Plate Diameter (H) - in.
- 7.25
- Max Bore Allowed - in.
- 1.5625
- Number of Blades
- 9
- Material
- Aluminum
- Weight - lbs
- 1.2
